Product Introduction
• Bore : ø25~ø63 mm • Pmax : 70 Kg/cm²
• The clamping mechanism on this series of hydraulic cylinder work with a lever principle. Piston push forward for clamping. It provides greater clamping force than that of swing clamp cylinder. Major parts are mounted outside of the cylinder barrel for convenient maintenance.
• The cylinder barrel and clamping mechanism are manufactured from structural carbon steel for maximum durability and long service life.
Hydraulic Lever-type Cylinder Product type
Product Introduction
Line type
M:Manifold type
FA:Flange type
MF: Manifold with flow control
MF63: Manifold with flow control
FAM: Flange with manifold
FCM: Flange manifold with flow control
Specification
| Bore of cylindermm | ø25 | ø32 | ø40 | ø50 | ø63 |
| Piston rod diametermm | ø18 | ø20 | ø22.4 | ø28 | ø35 |
| Total strokemm | 25 | 25 | 30 | 34 | 40 |
| Pressure area(pull/push)cm² | 2.37 / 4.91 | 4.9 / 8.04 | 8.63 / 12.57 | 13.47 / 19.63 | 21.55 / 31.17 |
| Theoretical clamping30 Kg/cm² | 116 | 191 | 287 | 453 | 701 |
| Fluid | Filtered air | ||||
| Max operation pressure | 70 Kg/cm² | ||||
| Operation pressure range | 5-50 Kg/cm² | ||||
| Acting type | Double acting | ||||

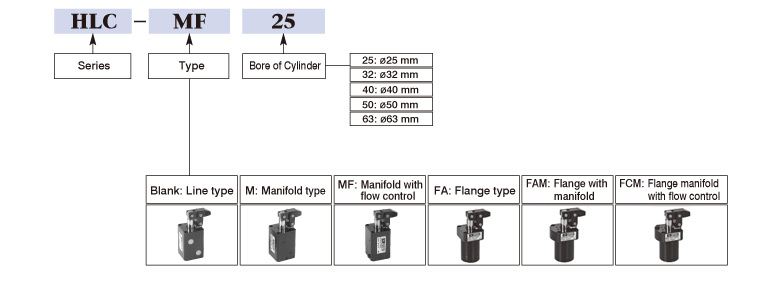

Order Code
