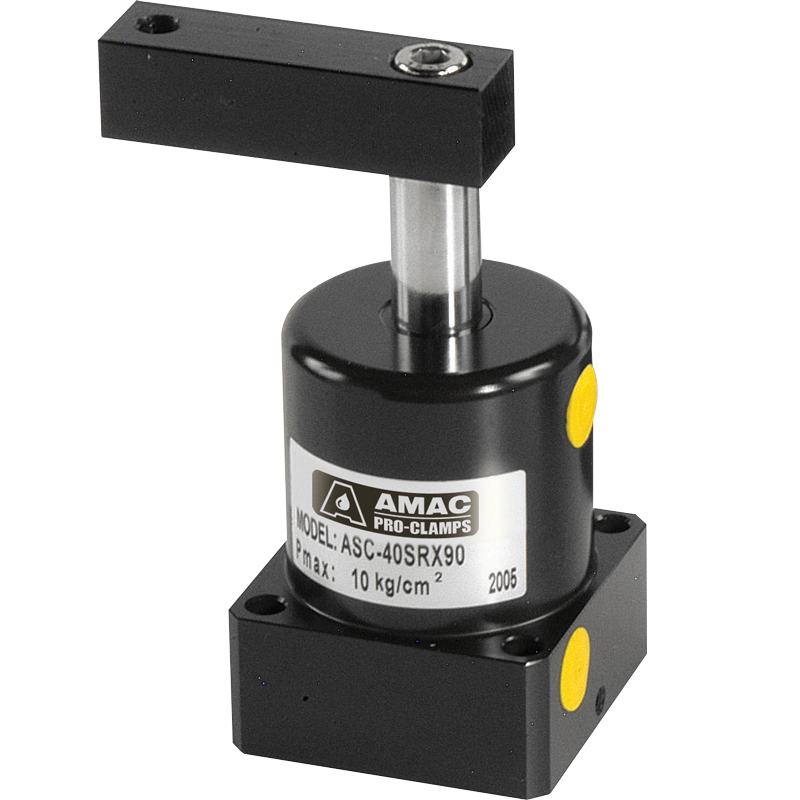

Product Introduction

• Bore : ø25~ø63 mm • Pmax : 10 Kg/cm²

• The product is ideal for mass production on a special purpose machine and jig on machining center. It will greatly upgrade production efficiency.

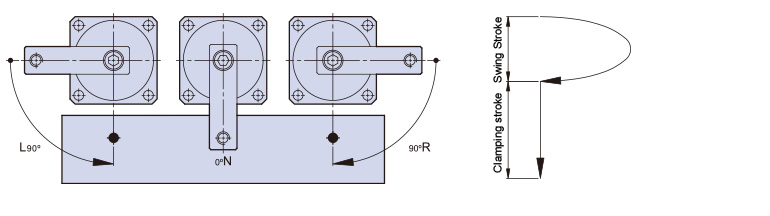

• When the air cylinder actuate, and the piston moves downward, the clamping arm will swing to a rated angle! Then it lowers until the workpiece is clamped securely.

• To avoid too fast motion a flow control valve is suggested to connect to the air inlet ports (A, B) on the swing clamp cylinder. Do not clamp workpiece while the clamp is swinging to avoid damaging on the cylinder barrel and internal parts.

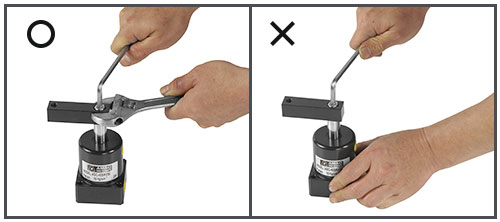

• When increasing length of clamping arm is required, be sure do not exceed 1.5 times of the ariginal length.

• The cylinder body is manufactured from aluminum allog. Surface is hard membrane treated for maximum smoothness on inside surface and long service life.

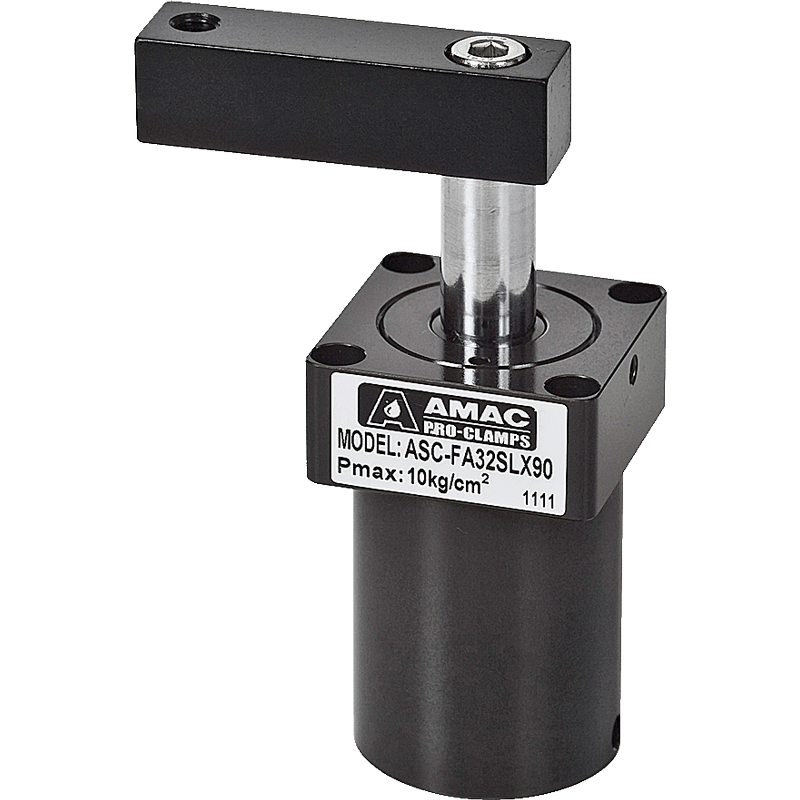

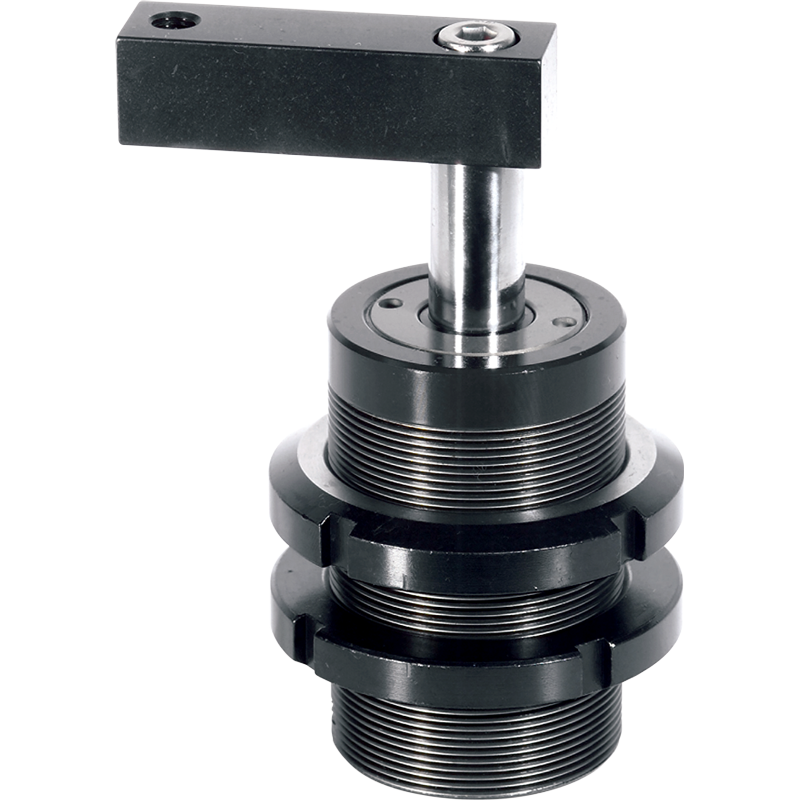

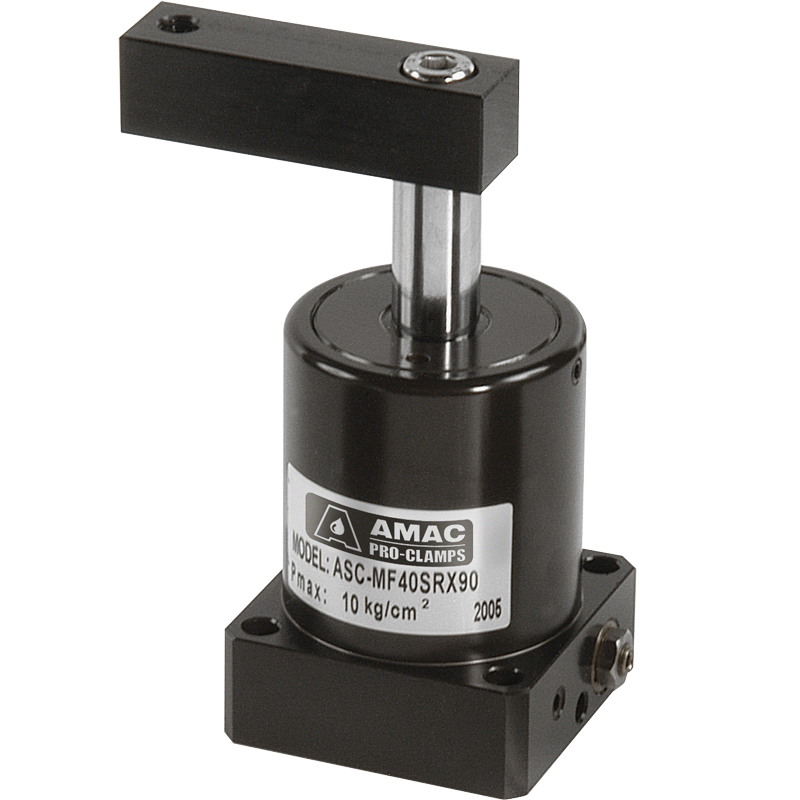

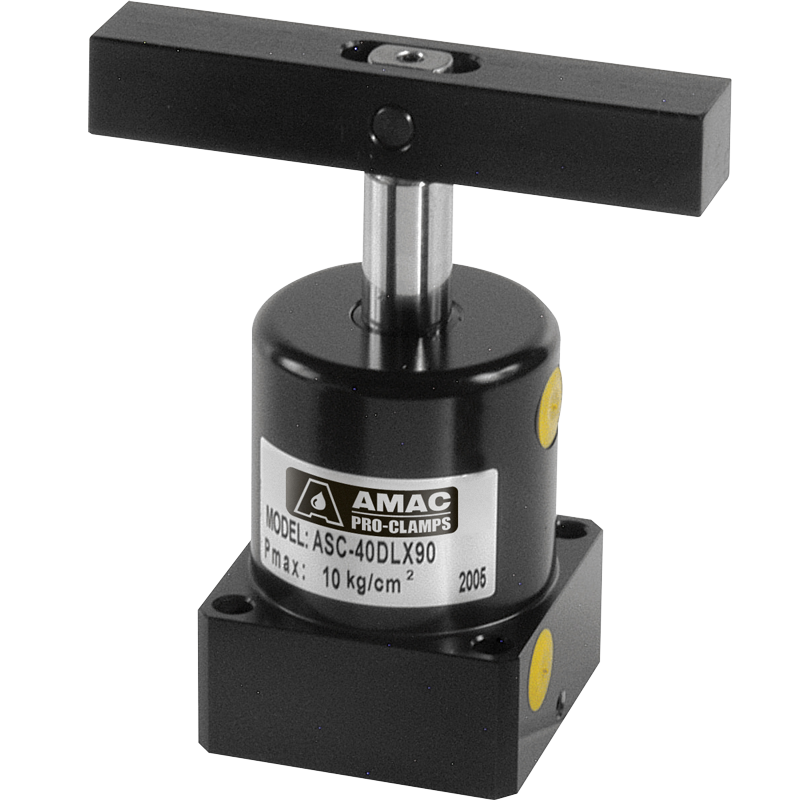

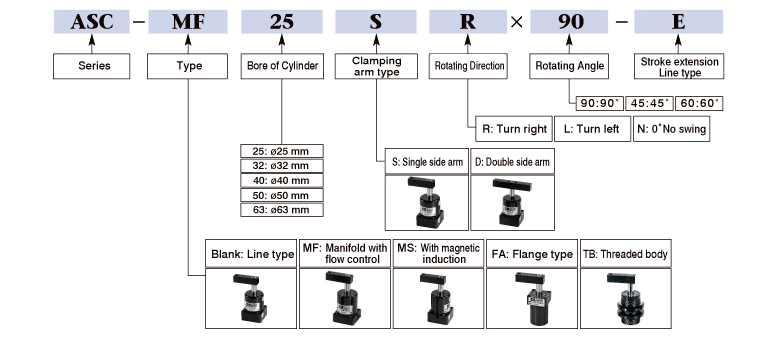

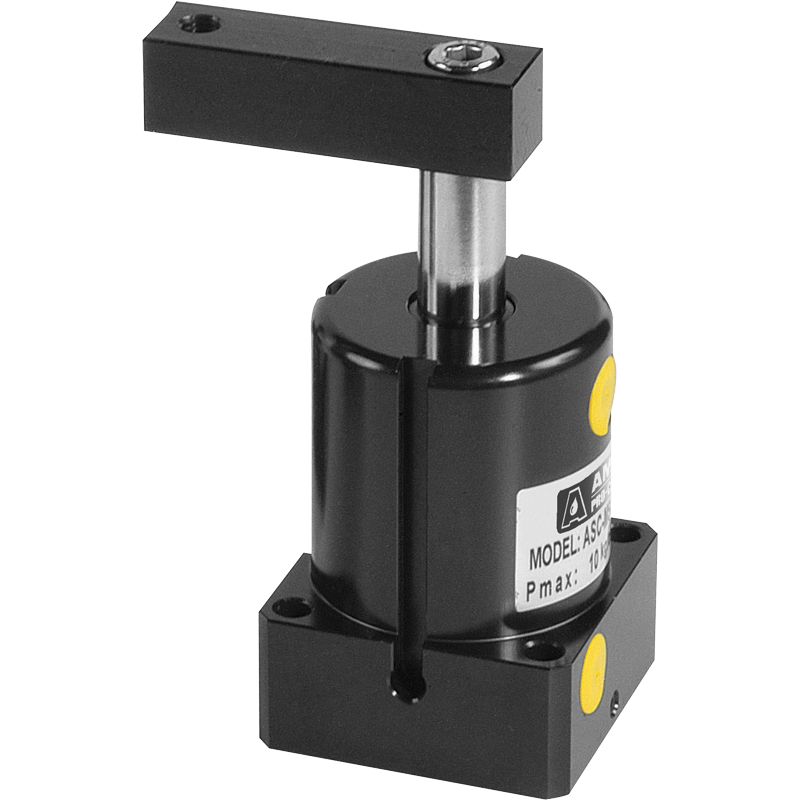

Air Swing Clamp Cylinder Product type

Product Introduction

Specification
Swing Clamp
Clamping Operating
File download

Specification

Bore of cylindermm	ø25	ø32	ø40	ø50	ø63
Piston rod diametermm	ø14	ø16	ø16	ø20	ø20
Swing strokemm	9	11	11	13	13
Clamping stroke (std/extension)mm	13	15 / 30	15 / 30	17 / 34	17 / 34
Pressure area(pull/push)mm	3.37 / 4.91	6.03 / 8.04	10.56 / 12.57	16.47 / 19.63	28.03 / 31.17
Theoretical clamping force6 Kg/cm²	20	36	63	99	168
Fluid	Filtered air
Max operation pressure	10 Kg/cm²
Operation pressure range	1-7Kg/cm²
Rotating direction	R:Turn right/ L:Turn left/ N: 0˚ No swing

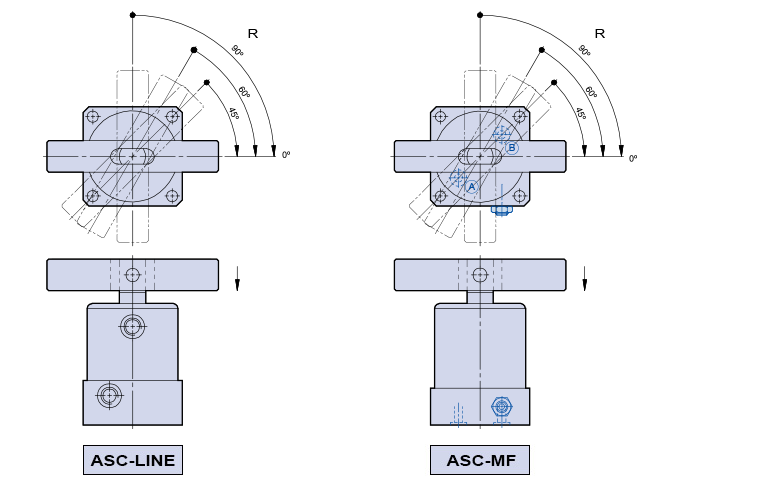

Rotating angle	Standard angle 90˚, Optional angle 45˚, 60˚
Acting type	Double acting
