Air Jig Cylinder Air Jig Cylinderport
Product Introduction
• Bore : ø12~ø100 mm    • Pmax : 10 Kg/cm²

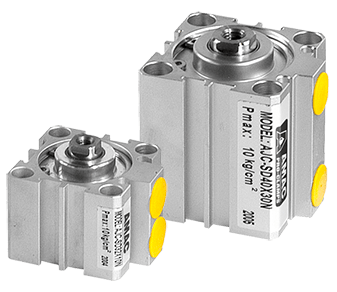

• The air jig cylinder is also named as extra compact cylinder. The cylinder barrel is light in weight, making it ideal for application in a restricted space.
• Standardized parts specifications. All parts are precision machined by CNC lathe to ensure maximum consistency of size and outstanding interchangeability.
• The cylinder barrel is manufactured from aluminum alloy, featuring smooth internal surface, maximum wear resistance and long service life.
• All models in this Series are available to equip with magnetic proximity switch.

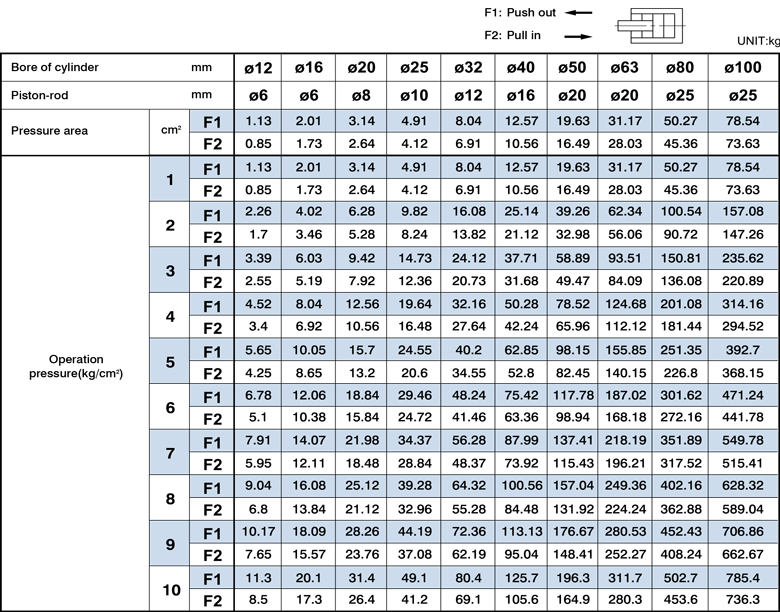

Bore of cylindermm ø12 ø16 ø20 ø25 ø32 ø40 ø50 ø63 ø80 ø100
Operation pressure range(Kg/cm²) 2-7 1.5-7 1-7
Operation speed range -10˚C ~ +60˚C
Standard storke Please refer to the Stroke specification
Fluid Filtered air
Material of cylinder barrel Aluminum alloy
Order Code
Air Jig Cylinder Order Code
1 Series AJC
2 Mounting type SD Single end rod type

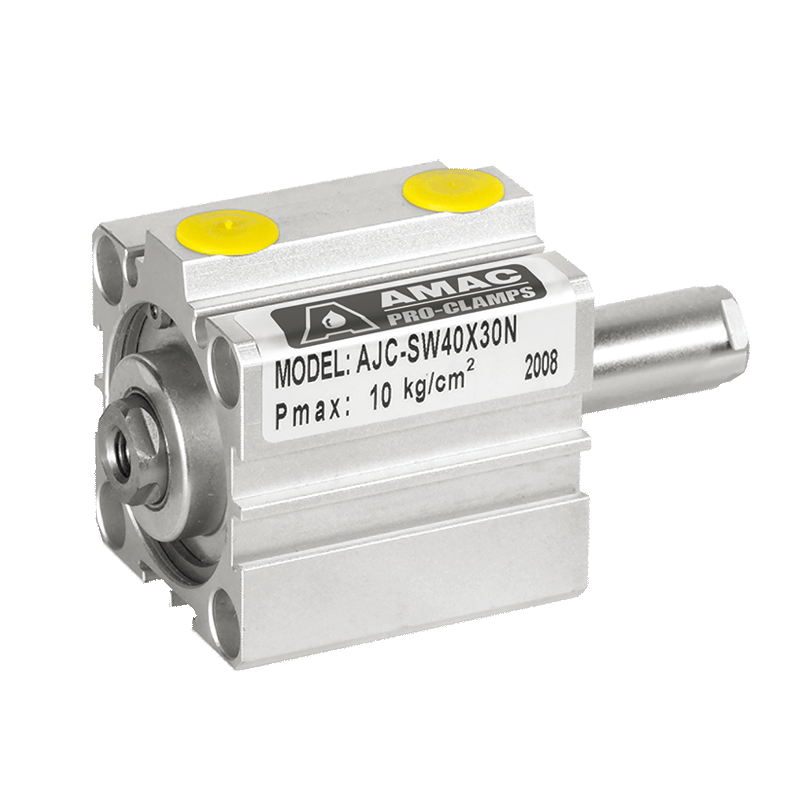

SW Double end rod type

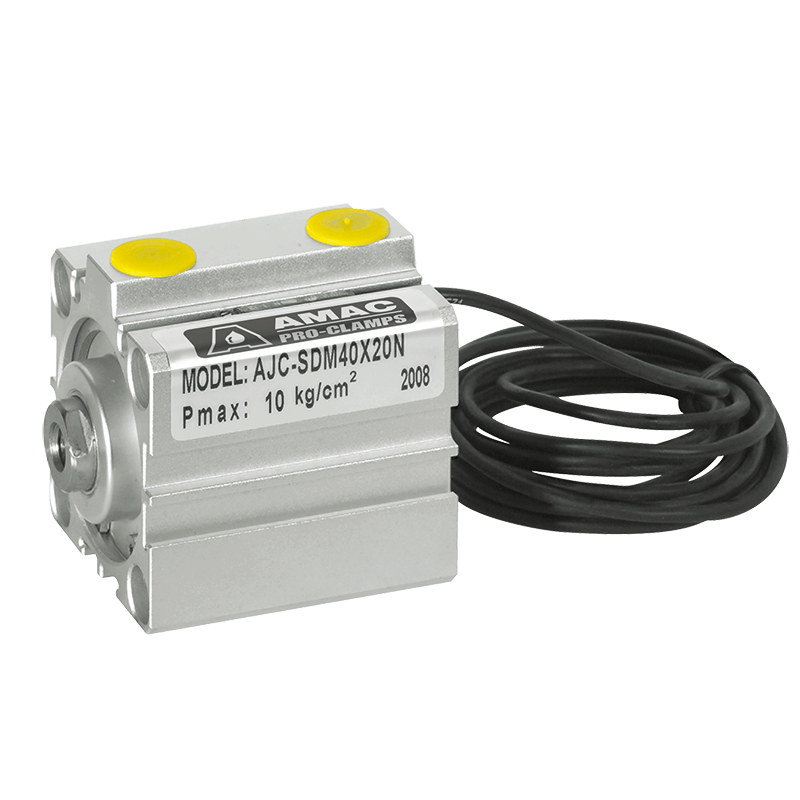

SDM Single end rod with magnet
SWM Double end rod with magnet
3 Bore of cylinder ø12, ø16, ø20, ø25, ø32, ø40, ø50, ø63, ø80, ø100
4 Standard storke AJC
5 Rod end type N: Internal thread     W: External thread
6 Sensor switch S1: 1 pcs,S2: 2 pcs
Current: 5-40mA / Volt: DC4-24V, AC4-120V
